Feat - Add a built-in MCP server for AI-assistant control in NotificationX

[ShahrearMSf]

Add a built-in MCP server for AI-assistant control (#84280) in NotificationX

Summary

Adds a Model Context Protocol (MCP) server built directly into NotificationX (Free) so approved AI assistants — Claude, ChatGPT, Cursor, and any MCP-compatible client — can manage notifications and read analytics in plain language. It is fully self-contained: no companion plugin, no external service, no terminal.

The feature is off by default, administrator-only, and loads only on a capable PHP runtime, so nothing changes for existing installs until an admin turns it on.

What's included

10 tools (abilities) exposed over MCP

Read	Write
list-notifications, get-notification, list-types, list-sources, get-analytics, get-settings	toggle-notification, update-notification, duplicate-notification, delete-notification

• JSON-RPC 2.0 transport at a pretty endpoint …/notificationx/mcp (plus the REST route) handling initialize / ping / tools/list / tools/call.
• Two ways to connect:
  • OAuth 2.1 + PKCE for one-click clients — dynamic client registration (RFC 7591), .well-known discovery, refresh-token rotation, and a first-party consent page.
  • Pairing token (bearer) for token-based clients.
• Admin UI — a native MCP tab in NotificationX → Settings: status badge, connector URL, token (show/copy), per-client setup cards, a connected-apps list with per-app revoke, connection health, and a one-click self-test.

How it works

• Each capability is a small self-describing ability (input/output JSON Schema + permission callback), registered in a lightweight registry that mirrors the WordPress Abilities API contract, so it can hand off to core's Abilities API later with no rewrite.
• The MCP server bridges those abilities to tools/list / tools/call. Every request authenticates (pairing token or OAuth access token) and then runs as the granting administrator — each ability re-checks native WP capabilities.
• Everything is server-rendered PHP (settings tab included), so no JS/build step is required.

Security

• Off by default, gated behind a single enable_mcp setting; when off, the endpoint returns 403 and discovery is inert.
• Bearer auth impersonates the granting admin and refuses anyone lacking manage_options.
• Read/write scope gating — a read-only credential cannot call write tools.
• Per-IP rate limiter on failed auth (fixed-window lockout).
• Secret redaction — get-settings never returns API keys/tokens.
• Destructive tools require explicit confirmation (e.g. delete-notification needs confirm:true).
• OAuth tokens are stored hashed at rest; PKCE (S256) is mandatory; codes are single-use; refresh tokens rotate.

Compatibility & rollout

• Progressive enhancement: the module loads only on PHP ≥ 7.0, so the plugin's existing minimum PHP is unchanged. On older PHP the module simply doesn't load.
• No schema/migration changes; state lives in a couple of options.
• No changes to existing behavior when disabled.

Screenshots

Free

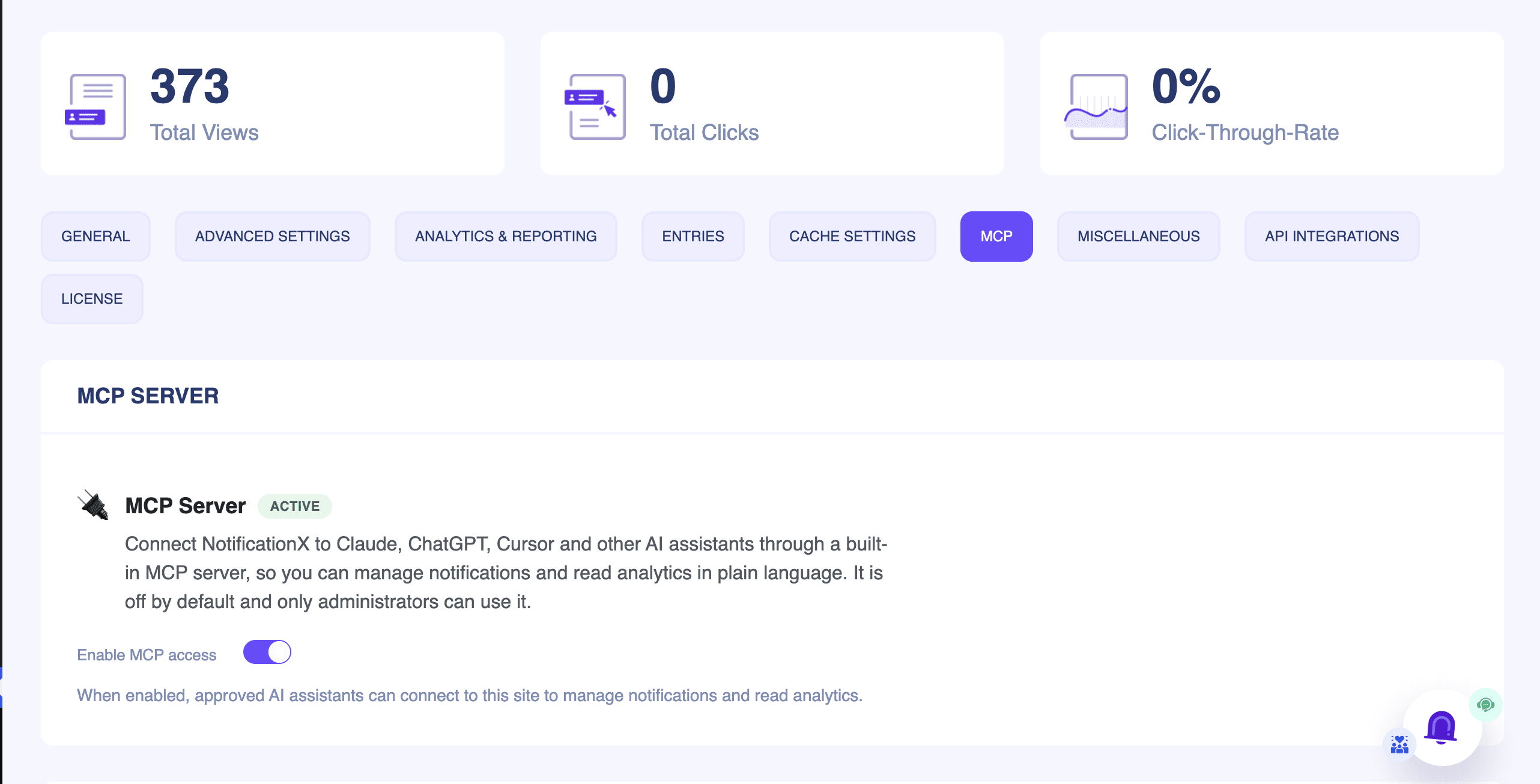

1. Enable & status — top of the MCP tab

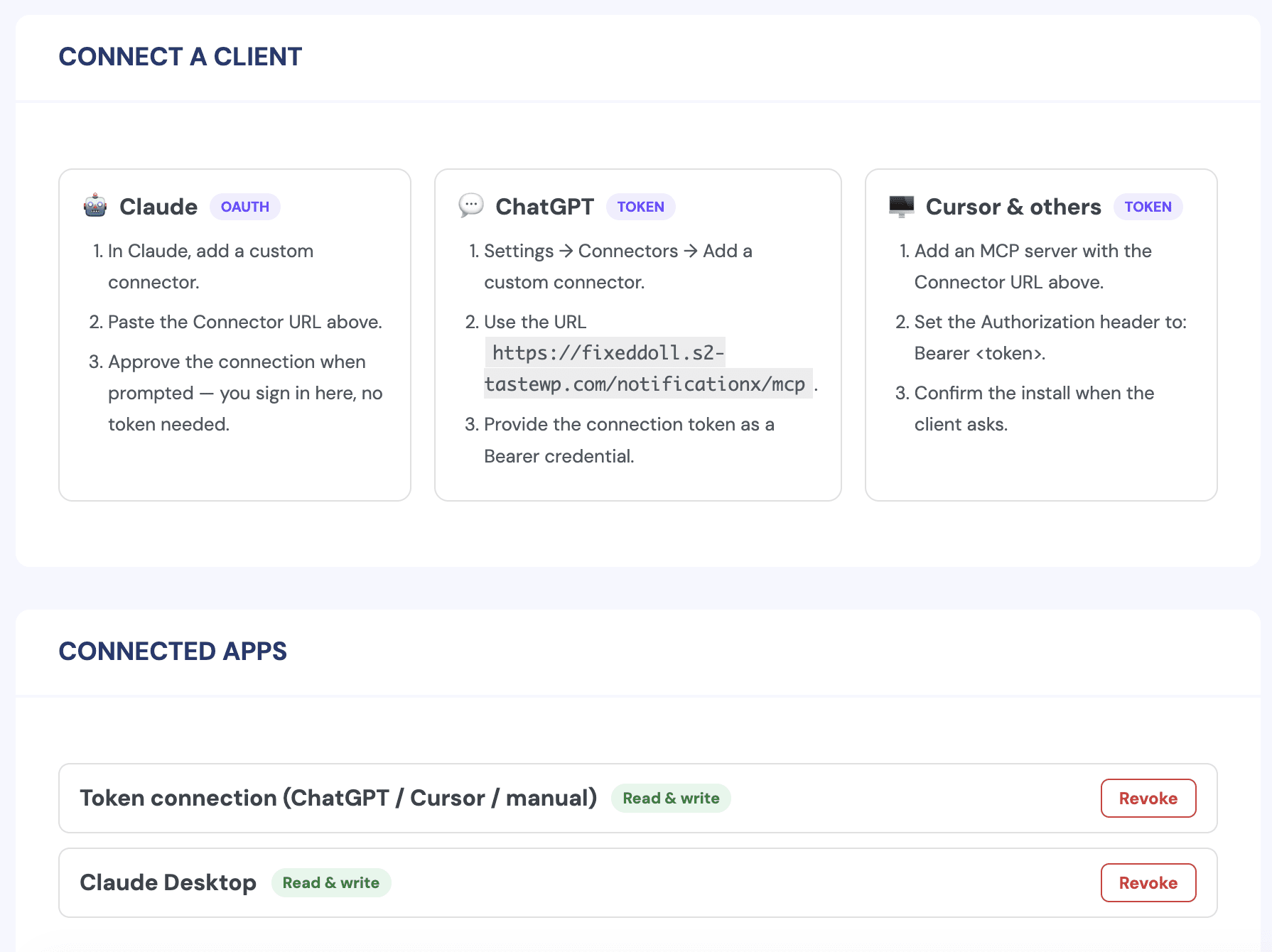

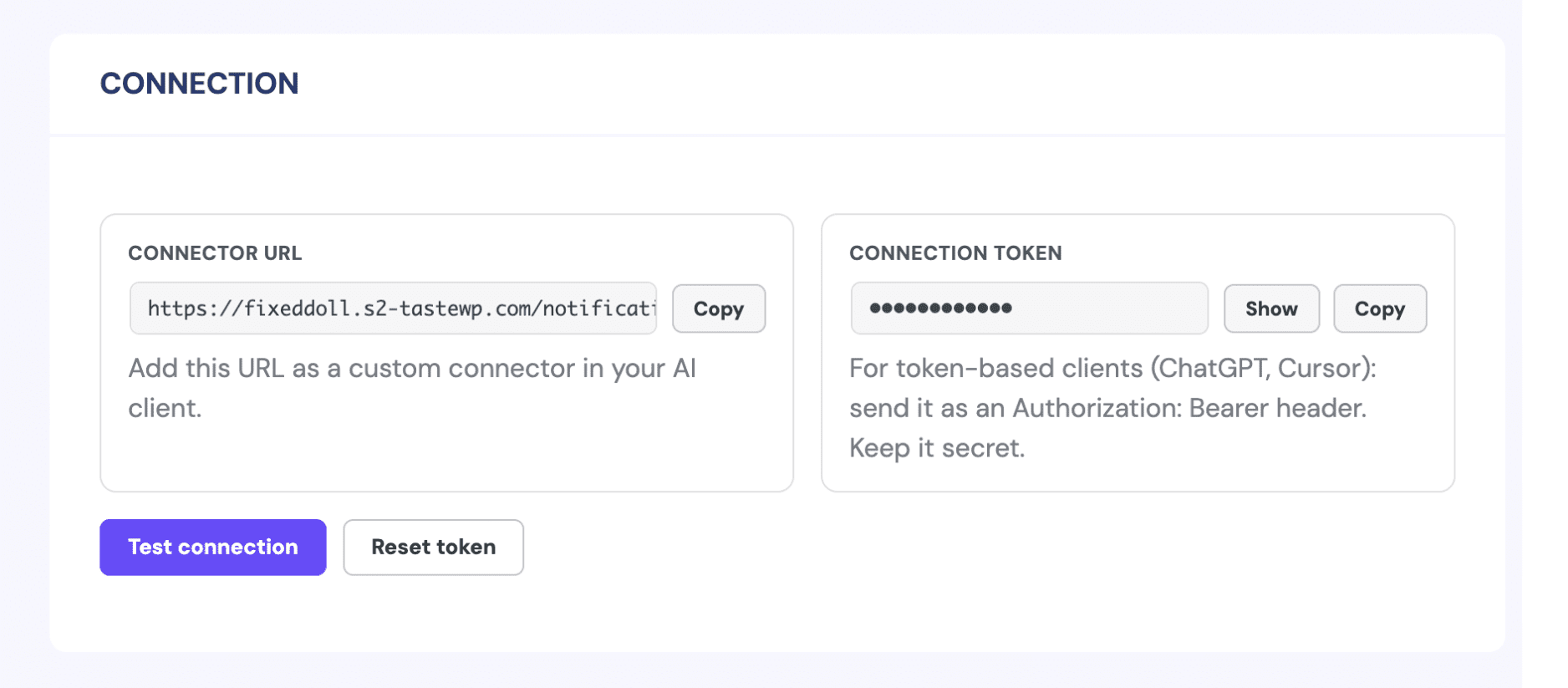

2. Connection & client setup

3. Connected apps

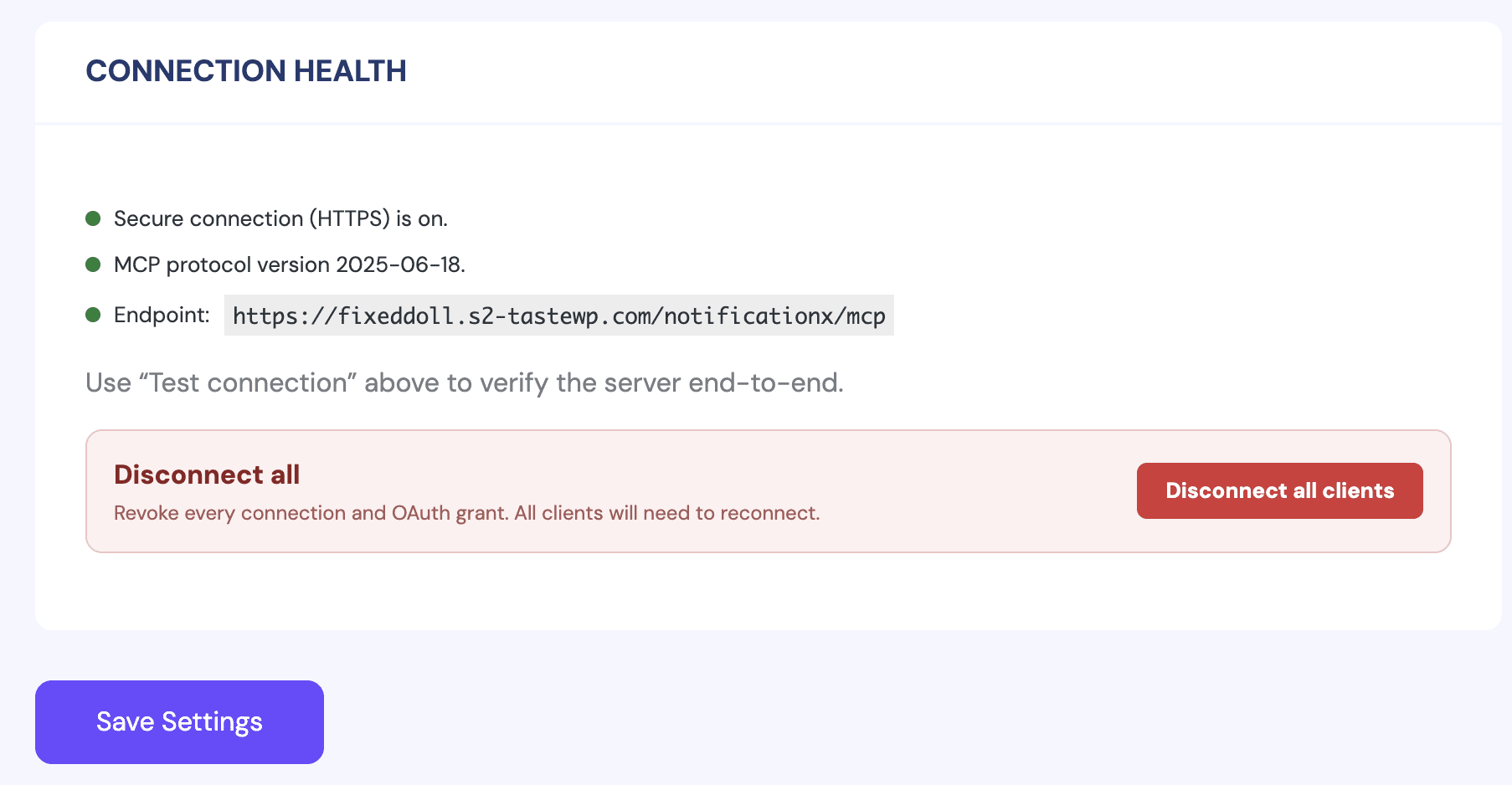

4. Connection health

With Pro active

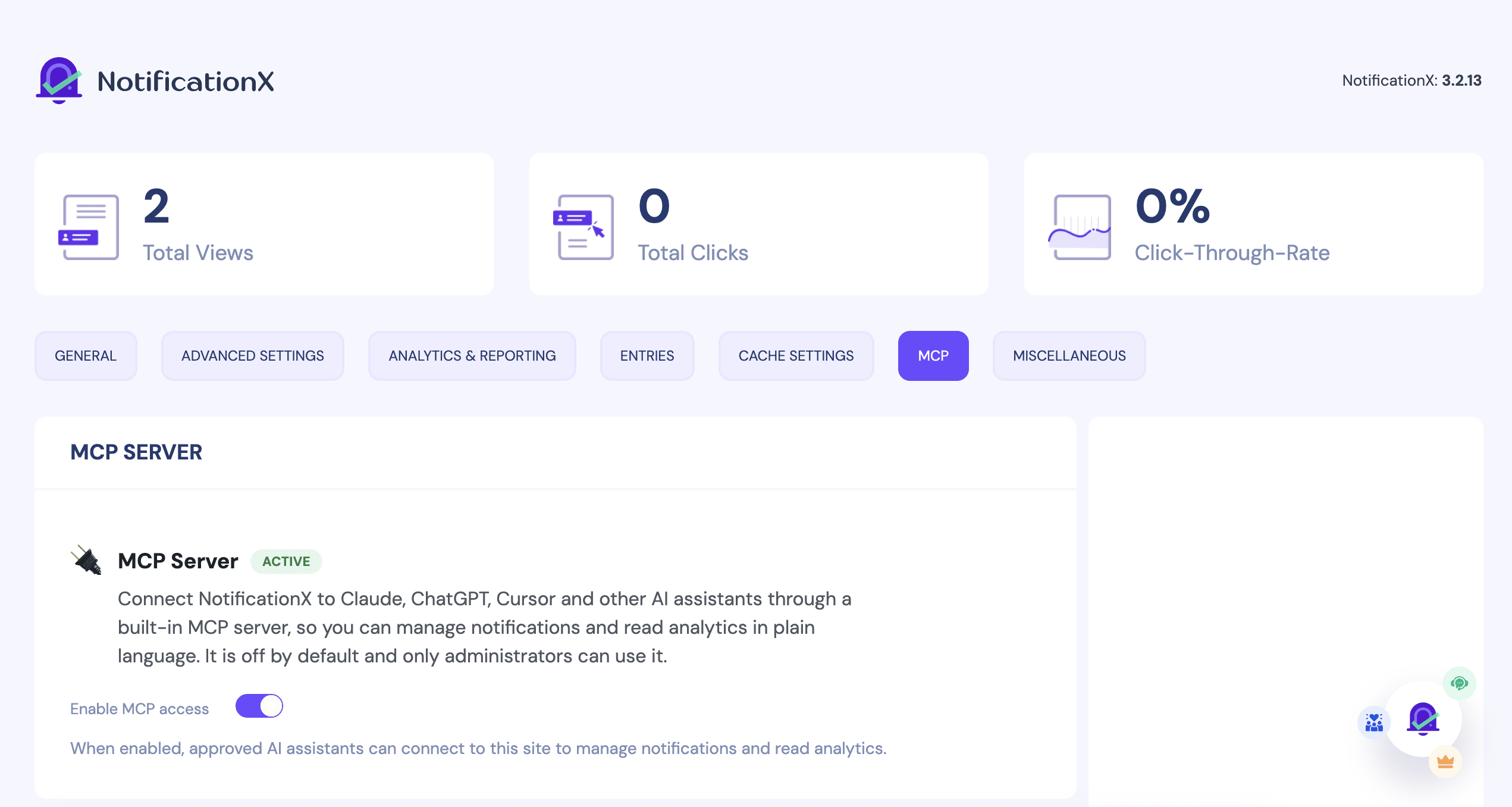

Top of the MCP tab (Pro installed)

Testing

Verified on a local site and a live HTTPS site, Free only (and with Pro active for the settings-tab render).

Transport & discovery

• Unauthenticated → 401 + WWW-Authenticate challenge; initialize returns the correct protocol/server info; tools/list → 10 tools; both .well-known OAuth documents serve 200.

Tools

• All read tools return real data; get-settings redacts secrets (***redacted***).
• All write tools verified end-to-end: update (rename), toggle (correct state + free single-active cap honored), duplicate (creates disabled), delete (confirm-gate: no-confirm blocked, with-confirm deleted).
• Read/write gating: read-only token is blocked from write tools.
• Rate limiter locks after the failure threshold; self-test reports the server healthy with all tools available.

OAuth 2.1 + PKCE (one-click path)

• Full flow verified: dynamic client registration → consent → code exchange → access token calls the MCP endpoint successfully; refresh-token rotation works and the old refresh token is rejected; PKCE tampering is rejected (invalid_grant).
• On the live HTTPS site, dynamic registration accepted a real client callback and the discovery documents advertise HTTPS endpoints — a hosted client can connect directly.

Management actions

• Reset token (old token → 401, new → 200), per-app revoke (token 200 → 401, app removed), disconnect-all, and reconnect all verified.

Connected apps

• Completed a genuine OAuth connection so a client appears in Connected apps with its scope badge and a working revoke.

Free features + analytics accuracy (live site)

• Created a notification via the builder, edited it, viewed it on the frontend, then confirmed analytics recorded exactly the views generated — and the number matched across the MCP get-analytics tool, the dashboard Total Views, and the list row.

Bugs found & fixed during testing

1. toggle-notification reported a stale enabled value (read a memoized state) — now re-reads from storage.
2. The pretty endpoint returned 401 instead of 429 when rate-limited (the auth header was reset after the status) — status is now asserted last.

UI polish

• Corrected the enable-toggle alignment (label + switch on one row; help text left-aligned) and tightened the settings panel (status badge, copy/reveal, connected-apps list, health, toasts).

Reviewer notes

• Runtime autoloading uses the optimized classmap, so the regenerated vendor/composer/autoload_classmap.php + autoload_static.php are committed alongside the new classes.
• No PR/merge automation assumed — targeting review before merge.
